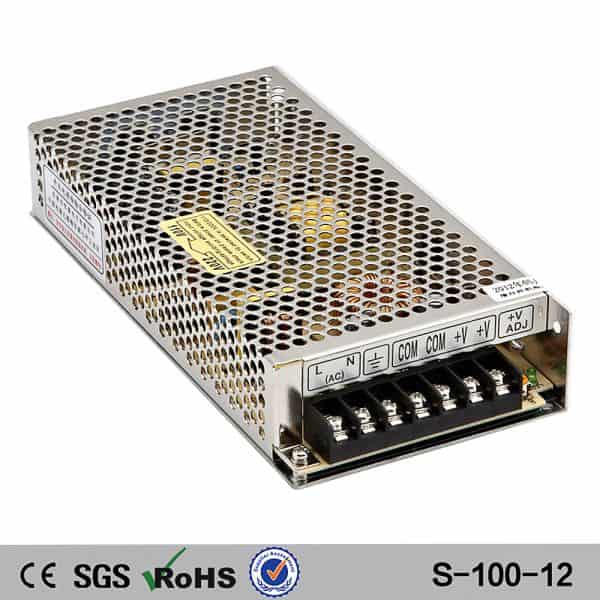

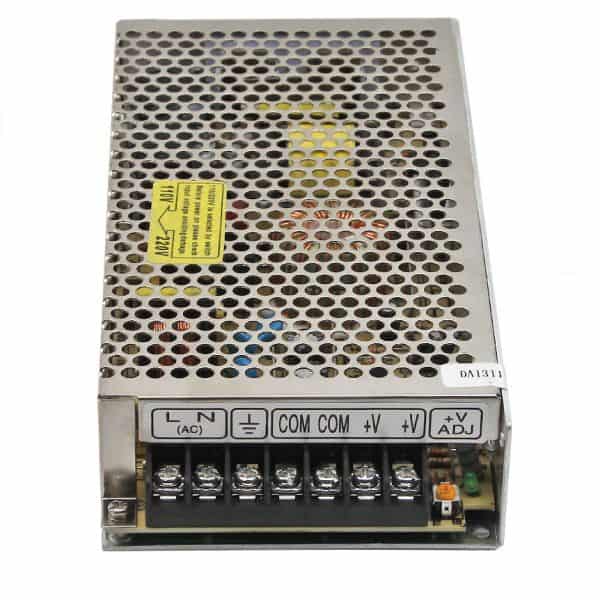

Netzteil Trafo Schaltnetzteil 12V 8.5A 100W
- Material Hülle: Aluminium
- Zertifikate: CE, RoHs
- DC Output Voltage, current: 12V 0~8.5A
- Wave and Noise 100mVp-p
- Inlet wire stability: ±0.3%
- Load stability: ±0.3%
- Efficiency: 81%
- Adjustable range for DC Voltage : ±10%
- Input Voltage Range :90-132VAC/180~264VAC by switch 254~370VDC 47~63HZ
- Impact current: Cold start current, 30A/115VAC 60A/230VAC
- Überspannungsschutz – Kurzschlußschutz: 105% ~ 150% cut off the output, automatic revovery
- Setup,rise, hold up time: 200ms, 50ms, 20ms/230VAC at full load
- Arbeitstemparatur: -10°C ~ 50°C
- Maße: 199 x 98 x 38mm
- Gewicht: 0.6Kg
- Verpackungsmaße: 43 x 32.5 x 24CM
